OEM CE Certification and Instant Tankless Electric hot water heater Manufacturer, Suppliers

Our products do not need to preheat ahead of time, namely hot type electric water heater does not need the tank of tank of inside store of big bulky body and heat preservation layer on the design so, most bulk is small, weight is light, and easy installation, save space, save material. Thus, the main advantage of the electric shower is that you heat only as much water as you use, as opposed to a conventional water heater, where power is wasted heating more water than is required. This makes the electrical water heater very economical.

Product Description

⚠️
Dirt and residues in the water can damage the product functioning. If water supplied to this equipment presents such characteristics, arrange installation of devices/filter that can avoid dirt and residues passing through the piping and into the product. Be sure that such devices are adequate and do not endanger the minimum functioning pressure of this product.

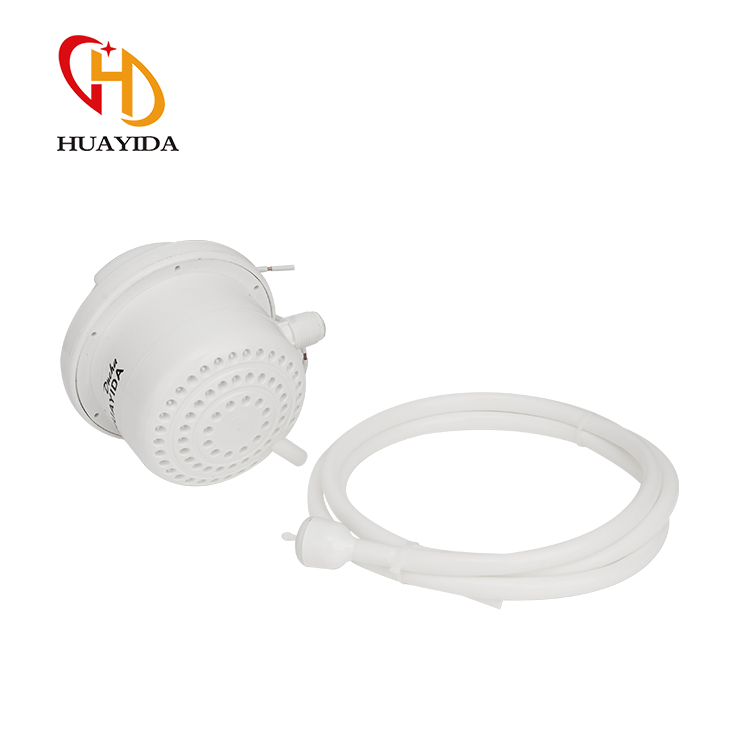

Product View 1
Product View 2
1
Electric leakage protection
2
5 seconds instantaneous heating
3
Water saving nozzle, easy to install and clean
4
Durable heating
5
Function of mixer: mixer cold water and hot water
6
Manual installation: Easy and simple to be installed
Circuit breaker Cable size Voltage Power rating
50A 10mm2 110/127V 4000/5400W
40A 6mm2 110/127V 3300/4400W
30A 4mm2 220/230V 5400W
25A 4mm2 220/230V 4400W
35A 6mm2 127V 3850W
Frequency 50/60hz Out water temperature 30-60℃
IP class IP24 Grounding wire YES
Water flow 5L/min Hose and hand shower YES
Frequently Asked Questions
How long does it take for the water to heat up?
The unit provides instantaneous heating within 5 seconds, ensuring you have hot water almost immediately.
What should I do if my water supply contains dirt or residues?
It is recommended to install a filter or similar device to prevent debris from entering the piping, which helps protect the product's internal components.
Is the installation process complicated?
No, the product is designed for easy manual installation. The mixer and components are simple to set up without complex tools.
What is the range of the output water temperature?
The output water temperature typically ranges between 30°C and 60°C, adjustable via the cold and hot water mixer.
Does this product include safety features?
Yes, it features built-in electric leakage protection and is rated IP24 for water resistance, including a grounding wire for added safety.
What cable size do I need for a 5400W rating at 220V?
For a 220/230V setup with 5400W power, a 4mm² cable size and a 30A circuit breaker are required.
